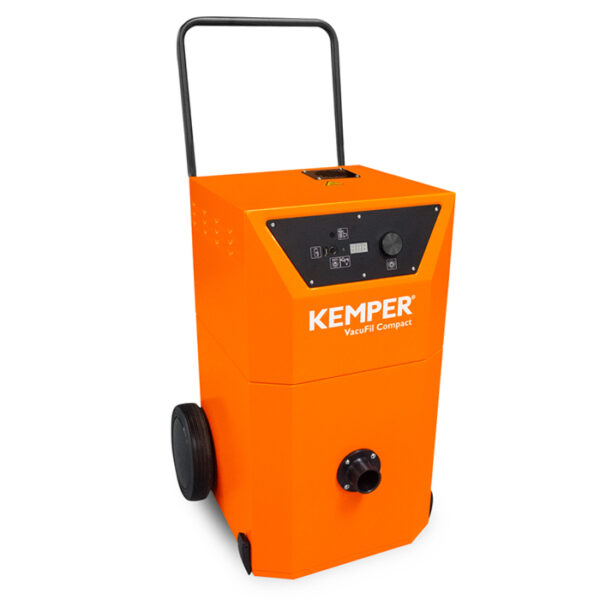

Kemper VacuFil Compact Fume Torch Extraction
The VacuFil Compact from KEMPER is a high vacuum extraction unit designed for mobile ‘On Torch’ fume extraction applications. Engineering for industrial welders, this portable fume exaction unit delivers high extraction capacity thanks to its side channel extraction blower. Stepless speed control and automatic air volume control adjustment allows the unit to increase and decrease motor speed due to filter saturation. It has a large cleanable filter and comfortable one-button operation, even while wearing welding gloves!
- 230V Single Phase 15Amp
- 1.5Kw Motor
- 160m3/h Extraction Capacity
- 24,000Pa Maximum Vacuum
- KemTex® ePTFE Filter Cartridge with Surface Filtration
- Automatic Filter Cleaning (Button Activated)
- Automatic Air Volume Control
- Stepless Speed Control for Optimal Adjustment
- High Extraction Capacity Due To Side Channel Blower
- Intuitive, One Button Operation
- Compact Design
- Cleaning Indicator
- Dust Collection Tray
- USB Type-A charging Socket
- Start Stop Sensor (Optional)
Package Includes: Kemper VacuFil Compact Extractor, Extraction Hose 2.5M, Airline Fitting, Input Cable & 15Amp Plug.
Have a question about this product?
Give us a call on 03 341 5591, or send us a email at [email protected]
Single-Station Welding Fume Extractor – Compact, Powerful & Built for Everyday Use
Built for high levels of smoke and particle filtration, this powerful unit is designed for regular use on torch extraction in demanding welding environments. Supporting single alternating workstations, it delivers exceptional flexibility and efficiency. Featuring stepless preselection of extraction power, automatic air volume control, and intuitive one-button operation (glove-friendly), it’s engineered for smooth, hassle-free operation. The KemTex® ePTFE filter cartridge ensures top-tier filtration, while the large filter surface maximises service life. With one 45/63mm connection, a side channel blower, and an interface for extensions, this extractor adapts easily to your workflow. Added conveniences include a tool tray with cup holder, USB charging port, and automatic start-stop for energy efficiency.
Applications:
- High levels of smoke and particles
- Regular use
- Torch extraction
- Alternating work places
Benefits:
- Stepless preselection of the extraction power for the use of various extraction torches
- Intuitive one-button operation, for use with gloves
- Outstanding price-performance ratio thanks to a wide range of additional features
- High extraction capacity by means of side channel blower
- Well suited for changing workplaces due to compact design
Properties:
- Side channel blower
- Intuitive one-button operation
- Stepless air volume selection
- USB Type-A charging socket
- Compact design
- Monitoring of the extraction rate
Filter:
- Filter stages 1
- Filter method – Cleanable filter
- Filter cleaning method – Rotating nozzle
- Filter surface 6.7 m²
- Type of filter – Filter cartridge
- Filter material – KemTex® ePTFE membrane
- Filter efficiency > 99.9 %
- Dust classification M
Technical Data:
- Max. extraction capacity 160 m³/h
- Extraction performance at 18000 Pa 50 m³/h
- Max. fan performance 220 m³/h
- Maximum vacuum 24000 Pa
- Dimensions (w x t x h) 589 x 625 x 1191 mm
- Weight 65 kg
- Motor power 1.5 kW
- Power supply 1 x 230 V / 50 Hz
- Rated current 13 A
- Hose connection – Ø 45 mm / Ø 63 mm
- Air outlet – 63 mm
Additional Information:
- IFA-Certification – W3-Approved
- Fan type -Side channel blower
Additional information
| Brand | Kemper |
|---|
