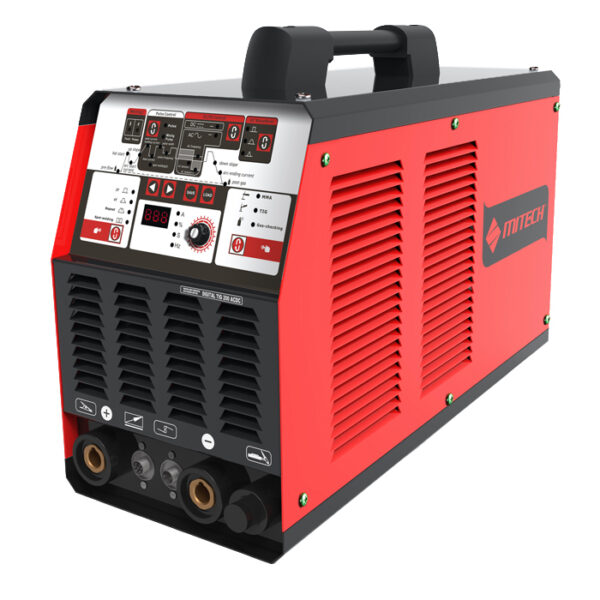

Mitech DIGITALTIG200 ACDC Pulse Tig/Stick Welder

The Mitech DigitalTig 200 ACDC Pulse is a high-performance, microprocessor-controlled inverter welder engineered for precision TIG welding, with integrated MMA capability for added versatility. Designed for professional fabricators and workshop environments, it delivers exceptional control across a wide range of materials including Mild steel, Stainless Steel, Copper, Nickel Alloys, and Aluminium.

Equipped with advanced AC/DC pulse functionality, the DigitalTig 200 ACDC offers full parameter control to optimise arc stability, penetration and weld appearance. Features such as adjustable AC waveform’s Triangular, Sine & Square, AC frequency control, AC Balance both positive and Negative sides of the AC waveform, and programmable memory settings provide unmatched flexibility for both light fabrication and demanding industrial applications.

The intuitive digital interface allows precise adjustment of all welding parameters, ensuring repeatable, high-quality results. Built-in protection systems including over/under voltage and phase loss protection enhance reliability and durability in challenging site conditions. Comprehensive adjustment controls include pre-gas, starting current, hot start, up slope, base current, pulse current, pulse frequency, AC balance, AC frequency, down slope, ending current, and post gas, giving operators complete command over every stage of the weld cycle.

The DigitalTIG 200 ACDC sets the benchmark in its class for performance, control and reliability.

Key Features

• 200Amps @ 60% Duty Cycle
• Latest Microprocessor Inverter Technology
• Output Current MMA: 40-180A
• Output Current TIG:  5-200A
• High Frequency Start
• Pre Gas                              0-10s
• Hot Start                           50-200A
• Arc Starting Current        10-200A
• Up Slope                            0-10s
• Base Current                    5-200A
• Pulse Current                    5-200A
• MMA Current                    40-180A
• Pulse Width                       10-90%
• Pulse Frequency               1-200Hz
• AC Balance Width            10-90%
• AC Balance Depth            -50 – 50%
• AC Frequency                   20-200Hz|
• Post Gas                             0-10s
• Down Slope                        0-10s
• Trigger Function                2T/4T
• Remote Amperage            Foot Pedal / Remote Torch
• Thermal Overload Protection – Prevents machine from exceeding a safe operating temperature
• Lightweight Only 13.9KG!

2 Year Warranty with Product Registration*
