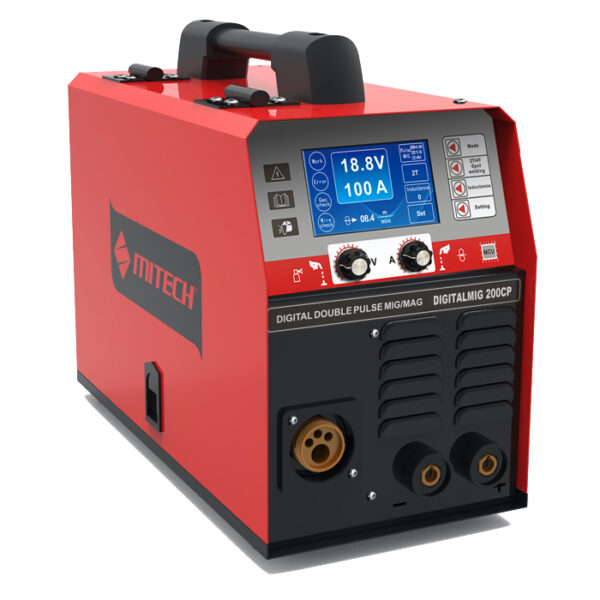

Mitech DIGITALMIG 200CP Mig/Tig/Stick Welder
Mitech’s DIGITALMIG 200CP Single Phase Pulse! Offering infinite voltage and wire speed control for optimum control of welding parameters. Now with Synergic programmes – just select your Material Type, Wire Diameter and Shielding Gas then you can adjust your voltage or wire speed up and down with one dial! Lighter and more portable than previous models, delivering higher duty cycles at higher amperages. The DigitalMig 200CP is designed as Single and Double Pulsed MIG welding machine with MMA (ARC Welding) & Lift Tig capabilities. Ideal for Aluminum or Stainless steel fabrication but is also suitable for Mild steel operations including Solid Wires wires up to 1.2mm.
- 200Amp @ 60% Duty Cycle
- Output Current MMA 40-180A
- Output Current MIG 40-200A
- Output Voltage: 16-24V
- Wire Diameters 0.6-1.2mm
- 15Amp Power Plug
- Thermal Overload Protection – Prevents machine from exceeding a safe operating temperature
- Euro Torch Connection
- Weight Only 9.4kg!
Package Includes: Mitech DIGITALMIG 200CP Machine, 3m MB25 Mig Torch, Carbon Alloy Liner, 3m Twist-Lock Arc Lead, 3m Earth Lead, Argon Regulator, Input Lead & 15Amp Power Plug.
Have a question about this product?
Give us a call on 03 341 5591, or send us a email at [email protected]
Mitech’s DIGITALMIG 200CP Single Phase Pulse! Offering infinite voltage and wire speed control for optimum control of welding parameters. Now with Synergic programmes – just select your Material Type, Wire Diameter and Shielding Gas then you can adjust your voltage or wire speed up and down with one dial! Being the latest IGBT technology also means this machine is much lighter and portable than previous models, delivering higher duty cycles at higher amperages compared to conventional MIG power sources. The DIGITALMIG 200CP is designed as Single and Double Pulsed MIG welding machine with MMA (ARC Welding) & Lift Tig capabilities. The 200CP welding machine has been designed mainly for the uses with Aluminum or Stainless steel wires but is also suitable for Mild steel operations including Solid Wires & Flux Cored gas shielded wires up to 1.2mm.
Pulse Mig offers a finished weld appearance similar to TIG welding but with significantly faster travel speeds, lower labour costs, and less welding spatter which reduces clean up time. Single Pulse – Alternates between a Base and Peak welding current. Double Pulse – Uses a second background current to have finer control of the arc during the pulse process. Euro torch connection allows easy connection and removal of welding torch. Thermal and voltage overload protection. Low noise fans for quiet and smooth operation. The DIGITALMIG 200CP is suitable for various applications including Aluminium Fabrication, Stainless Steel Fabrication, General Engineering, Repair & Maintenance, Agricultural etc.
Key Features
- Latest IGBT Inverter Technology
- 200Amps @ 60% Duty Cycle
- MIG/MAG
- Output Current MIG: 40-200Amps
- Output Current MMA: 40-180Amps
- Output Voltage: 16-24V
- Wire Diameters: 0.6-1.2mm
- Latching Triggers: 2T / 4T
- Inductance Control
- Arc Force Control
- Post Flow Adjustment
- Generator Compatible
- Euro Connection Torch
- 1-5Kg Wire Spools
- Weight 9.4kg
- Dimensions: (LxWxH) 400 x 195 x 270mm
2 Year Warranty* With Product Registration
