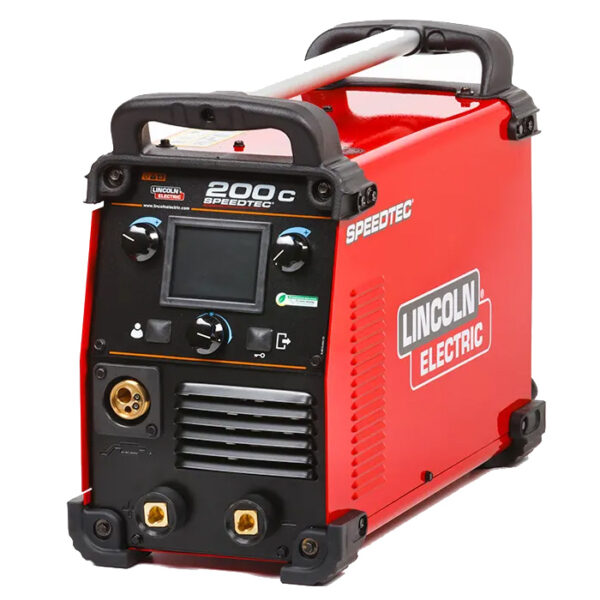

Lincoln Speedtec 200C Mig/Tig/Stick Welder

MANY TASKS, MANY LOCATIONS

The SPEEDTEC® 200C represent Lincoln Electric’s latest generation of state of the art inverter based single phase compact MIG machines. Lincoln Electric has constructed a fully professional machine packed with features into a small compact housing with a portable low weight. These features make the SPEEDTEC® 200C extremely versatile.

It can be used for many different applications, and easily moved around production facilities or transported to any location effortlessly, and is also suitable for use with motor generators. The SPEEDTEC® 200C is equipped with Power Factor Correction (PFC), a feature which supports high output welding current from a single phase 240V 15A 50/60Hz supply and allows to use a long (up to max 100m) primary extension cable. With electronically designed welding waveforms Lincoln Electric offers these multi-process units for MIG, Stick or TIG modes.

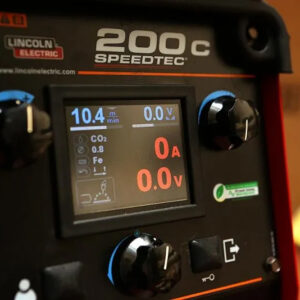

The SPEEDTEC® 200C is an advanced multi-process model that can be used for CV MIG (Manual and Synergic), CC Stick and DC Lift TIG. It has a large bright (adjustable) colour TFT User Interface that allows easy viewing of welding parameters and easy access to other features and menu’s. The screen uses simple, easy to understand icons rather than traditional text and so instructions and commands are readily understood. The SPEEDTEC® 200C is ready to tackle many different welding applications. The welding performance gives excellent results for Steel, Stainless Steel and Aluminium (using 200mm dia. spools). The SPEEDTEC® 200C works perfectly with mixed gas and 100% CO2 also with self-shielding wires (Innershield). Supported with the Lincoln Electric professional wire drive system with 37mm diameter rolls.

The SPEEDTEC® 200C has been equipped with Power Factor Correction (PFC), a feature which supports high output welding current from a single phase 230V1Ph 50/60Hz supply. PFC bring many benefit’s for the same input current almost 30% more output can be obtained, allowing the use of a long (e.g. 50m) primary extension cable thus reducing energy demands and costs. In addition PFC reduces the power dissipation on input cables by up to 50% hence reducing energy costs. The Perfect Sinusoidal input current waveform reduces harmonics and allows compliance with the latest European standard EN 61000-3-12. The SPEEDTEC® 200C is a real “Green Initiative” welding machine.
