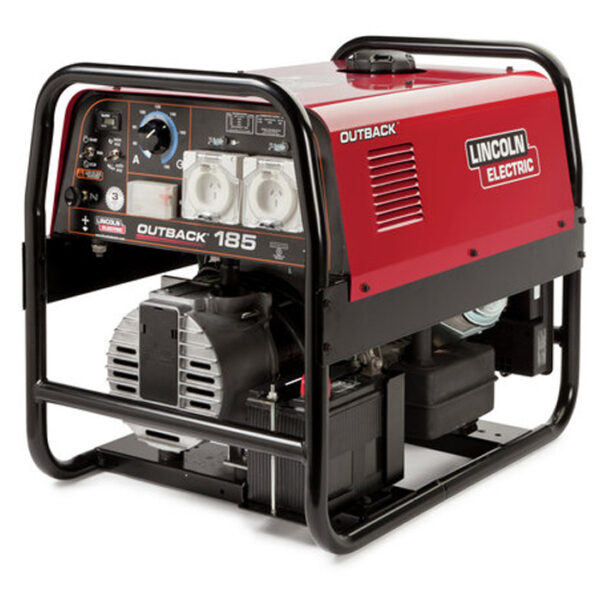

Lincoln Outback 185 Engine Driven Welder
Great for anyone who needs portable DC stick welding and AC generator power!
- 185 AMP DC stick welding with 240VAC generator power.
- Delivers up to 15 amps continuous power from the 240V AC receptacles.
- 5,700 Watts Peak AC Generator
- 5,200 Watts Continuous AC Generator
- Low-Lift™ Grab Bars (Patent Pending)

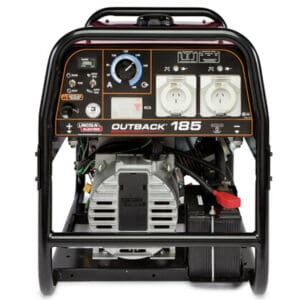

- All Engine Controls on Front Control Panel
Package includes: Lincoln Electric Outback™ 185 Engine Driven Welder. (Leads sold separately.)
Please call or enquire to customise your package.
Have a question about this product?
Give us a call on 03 341 5591, or send us a email at [email protected]
Built for the Outdoors!™
Great for anyone who needs portable DC stick welding and AC generator power! The Low-Lift™ grab bars on both ends make lifting the Outback® 185 on and off truck beds easy. The compact Outback® 185 is easy to start with all engine controls on the front of the machine, and it’s easy to use for welding. Use the AC generator power for a variety of applications described below with the large 25.7 litre fuel tank!
- Low-Lift™ Grab Bars
- More leverage for lifting unit on and off truck beds.
- Extra protection against product damage.
- Best in class feature!
- All Engine Controls on Front Control panel
- Easy access for starting, especially when mounted on truck beds.
- Front panel includes electric start switch and engine choke control.
- Best in class feature!
- 32 mm Diameter Rugged Tube Frame
- Great for all-around sturdy protection.
- Best in class feature!
- 25.7 Litre Fuel Tank
- Less frequent re-fueling, for extended run times.
- Large fuel fill opening for easy re-fueling too!
- Best in class feature!
- Weld with up to 4 mm Stick Electrode
- Up to 185 amps of DC output for many applications.
- 5,700 Watts Peak AC Generator Power (5,200 Watts Continuous).
- Many uses! Grinder, work lights, pump, motor starting, or emergency power.
- Plug in a Lincoln Electric POWER MIG® 180C for wire welding.
- Plug in a Lincoln Electric TOMAHAWK 30K (with internal compressor) to Plasma Cut Aluminium, Stainless & Steel.
Features
- The Outback® 185 engine driven welder has portable 185 AMP DC stick welding with 240VAC generator power.
- Low-Lift™ Grab Bars (Patent Pending)
- All Engine Controls on Front Control Panel
- 32 mm Diameter Rugged Tube Frame
- 25.7 Litre Fuel Tank
- Delivers up to 15 amps continuous power from the 240V AC receptacles.
- RCD Safety Switch, for additional protection from electric shock
- All outlets are circuit breaker protected and are IP66 rated
- Electric Start for Easy Starts with a backup recoil pull start for a weak battery.
- Easy engine maintenance with No oil filter to change, just change oil every 100 hours.
