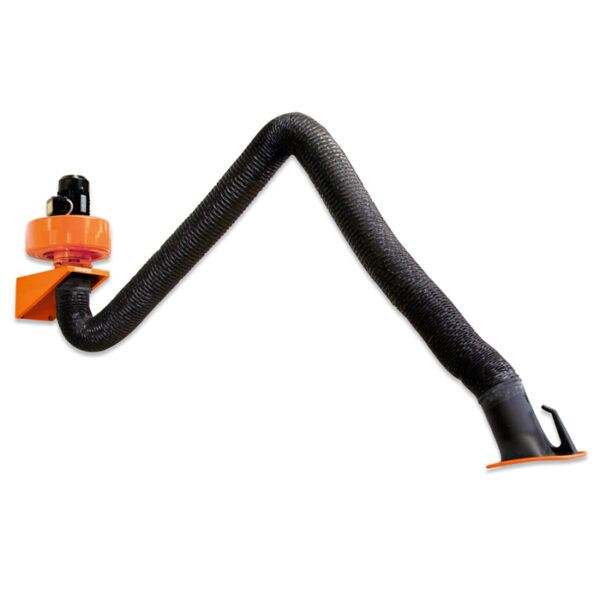

Kemper Welding Fume Exhaust Set
The welding fume exhaust kit by Kemper, consisting of a 4m exhaust arm and fan is a particularly simple and cost-effective solution anywhere where air filtration is not essential. It is suitable for high levels of smoke and dust such as welding fumes, gases, vapours, light dusts or vehicle exhaust fumes in non-stop operation. Suitable for all welding processes and materials, FE, SS, AL.
- 380V 3 Phase
- 0.75Kw Motor
- 1,000m3h Extraction Capacity
- 4m Flexible Extraction Arm
- Suitable for ARC, MIG & TIG Welding
- Compact and Solid Design

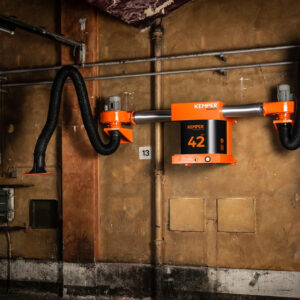

- Filtration Unit Available (WallMaster)
Package Includes: Kemper Exhaust Set Fume Extractor, 4m Flexible Extraction Arm, On/Off Switch. (Needs input cable.)
Have a question about this product?
Give us a call on 03 341 5591, or send us a email at [email protected]
The welding fume exhaust kit consisting of exhaust arm and fan is a particularly simple and cost-effective solution anywhere where air filtration is not essential. It is suitable for high levels of smoke and dust such as welding fumes, gases, vapours, light dusts or vehicle exhaust fumes in non-stop operation.
Applications:
- High levels of smoke and particles
- Non-stop operation
- Where filtration is not essential
- Welding fumes, gases, vapours, light dusts
Benefits:
- Very quiet due to housing of cast silumin
- 40% less adjustment of the exhaust arm needed due to exhaust hood design
- User-friendly due to particularly smooth movement of the hood with one hand
- Arm keeps position due to self-supporting design
Properties:
- 360 degrees rotating exhaust hood with damper
- Self-supported by internal springs
- As a flexible exhaust arm: Polyester fabric hose, PVC coated with welded steel wire spiral
- As a rigid metal tube arm: Powder-coated aluminum tube, three flexible hose sections
- Fan made of spark-proof cast silumin
Technical Data:
- Extraction capacity 1000 m³/h
- Max. fan performance 2000 m³/h
- Maximum vacuum 1350 Pa
- Weight 48 kg
- Motor power 0,75 kW
- Power supply 3 x 400 V / 50 Hz
- Rated current 1.5 A
- Noise level 73 dB(A)
- Fan type Radial fan
- Diameter extraction arm 150 mm
- Length of exhaust arm 4 m
Additional information
| Brand | Kemper |
|---|
