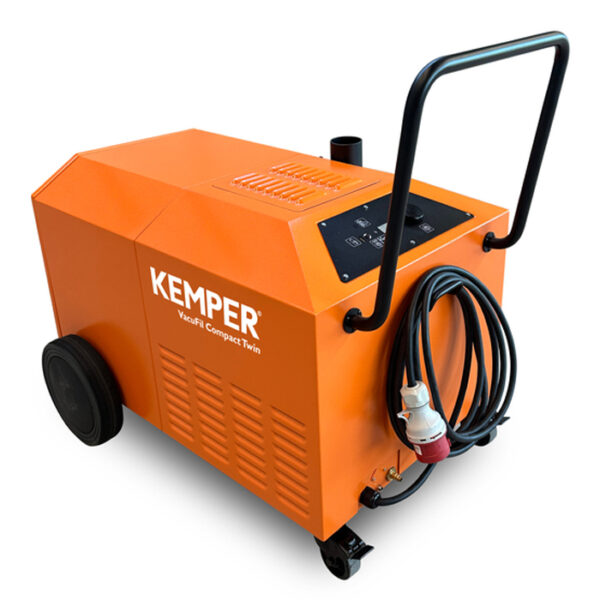

Kemper VacuFil Compact Dual Fume Torch Extraction
The VacuFil Compact Dual from KEMPER, is a high vacuum extraction unit designed for mobile ‘On Torch’ fume extraction applications. Engineering for industrial welders, this portable fume exaction unit delivers high extraction capacity thanks to its side channel extraction blower. Stepless speed control and automatic air volume control adjustment allows the unit to increase and decrease motor speed due to filter saturation. It has a large cleanable filter and comfortable one-button operation, even while wearing welding gloves!
- 400V 3 Phase
- 3.8Kw Motor
- 280m3/h @ 32,000Pa
- KemTex® ePTFE Filter Cartridge
- Automatic Filter Cleaning (Button Activated)
- Automatic Air Volume Control
- Stepless Speed Control for Optimal Adjustment
- High Extraction Capacity Due To Side Channel Blower
- KemTex® ePTFE Filter Cartridges with Surface Filtration
- Intuitive, One Button Operation
- Compact Design
- Cleaning Indicator
- Dust Collection Tray
- USB Type-A charging Socket
- Start Stop Sensors (Optional)
Package Includes: Kemper VacuFil Compact Dual Extractor, Extraction Hose 2.5M x2, Airline Fitting, Input Cable & 3 Phase Plug.
Have a question about this product?
Give us a call on 03 341 5591, or send us a email at [email protected]
Dual-Station Welding Fume Extractor – High-Performance, Compact & Versatile
Built for high levels of smoke and particle filtration, this powerful unit is designed for regular use on torch extraction in demanding welding environments. Supporting two alternating workstations, it delivers exceptional flexibility and efficiency. Featuring stepless preselection of extraction power, automatic air volume control, and intuitive one-button operation (glove-friendly), it’s engineered for smooth, hassle-free operation. The KemTex® ePTFE filter cartridge ensures top-tier filtration, while the large filter surface maximises service life. With two NW45/63mm connections, a side channel blower, and an interface for extensions, this extractor adapts easily to your workflow. Added conveniences include a tool tray with cup holder, USB charging port, and automatic start-stop for energy efficiency.
Applications:
- High levels of smoke and particles
- Regular use
- Torch extraction
- For two work places
- Alternating work places
Benefits:
- Stepless preselection of the extraction power for the use of various extraction torches
- Intuitive one-button operation, for use with gloves
- Outstanding price-performance ratio thanks to a wide range of additional features
- High flexibility thanks to two connections with NW45/63mm each
- Extensions can be integrated via interface
Properties:
- Large filter surface
- Side channel blower
- KemTex® ePTFE filter cartridge
- Intuitive one-button operation
- Stepless air volume selection
- USB Type-A charging socket
- Compact design
- Monitoring of the extraction rate
Filter:
- Filter stages 1
- Filter method – Cleanable filter
- Filter cleaning method – Rotating nozzle
- Filter surface 6.7 m²
- Type of filter – Filter cartridge
- Filter material – KemTex® ePTFE membrane
- Filter efficiency > 99.9 %
- Dust classification M
- Max. extraction capacity 280 m³/h
- Extraction performance at 18000 Pa 215 m³/h
- Max. fan performance 280 m³/h
- Maximum vacuum 32000 Pa
- Dimensions (w x t x h) 692 x 1018 x 878 mm
- Weight 93 kg
- Motor power 3.8 kW
- Power supply 3 x 400 V / 50 Hz
- Rated current 8.1 A
- Noise level 73 dB(A)
- Compressed air supply 6 – 8 bar
- Hose connection Ø 2 x D = 45 / 63 mm
- Air outlet 63 mm
Additional Information:
- Fan type -Side channel blower
