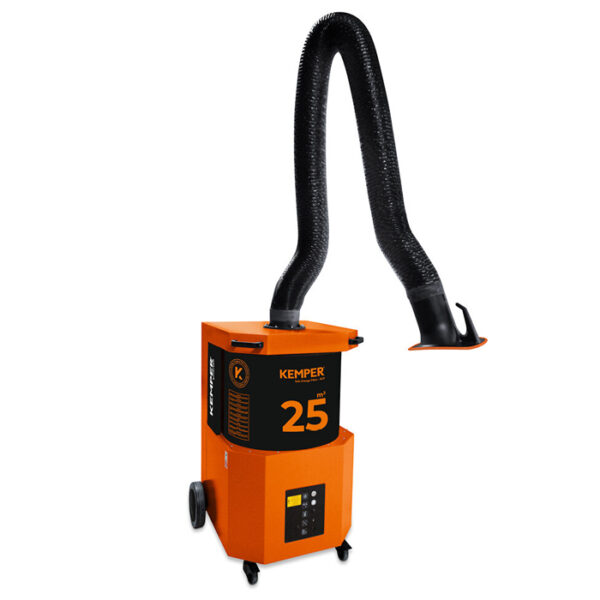

Kemper SmartFil Welding Fume Extraction

Mobile Welding Fume Extractor – Built for Performance & Safety

Engineered for professionals working with all materials including high-alloy steels, this extractor delivers reliable performance in medium-smoke and dust applications, even with frequent use across alternating workstations. Its flow-optimised, 360° rotating exhaust hood reduces the need for constant repositioning, while the integrated damper allows precise airflow control. With a 25m² high-capacity filter surface and W3/IFA certification, you get top-tier filtration, safe filter changes, and filter monitoring for added protection. Designed for convenience, it features automatic start-stop, optional integrated hood lighting with on/off control, and a 4m reach exhaust arm to cover a wide work area. The compact, solid build ensures long service life, and the long-lasting filters make it a cost-effective investment.

Applications:

• Suitable for all materials, including high-alloy steel
• Medium levels of smoke and dust
• Frequent use
• Alternating work places

Benefits:

• Exhaust arm requires less adjustment due to flow-optimised exhaust hood design
• Increased safety due to filter monitoring
• Increased safety with safe filter change
• Very economic due to long lasting high capacity filters

Properties:

• 360 degrees rotating exhaust hood with damper
• 25m² Filter Surface (Upgradable to 42m2 on replacement)
• Compact and solid design
• W3/IFA certified
• Automatic Start-Stop (optional)
• Lighting in the hood (optional)
• Exhaust arm 4m

Filter:

• Filter Stages – 2
• Filter Method – Storage filter
• Filter Surface – 25 m²
• Type of filter – Safe Change Filter
• Filter material – Cellulose with polyester nanofibre fleece
• Filter efficiency – > 99.5 %
• Filter class – E12

Technical Data:

• Extraction capacity – 1100 m³/h
• Dimensions (w x t x h) – 795 x 836 x 1169 mm
• Weight – 131 kg
• Motor power – 1.5 kW
• Power supply – 3 x 400 V / 50 Hz
• Rated current – 3.1 A
• Noise level – 70 dB(A)

Additional Information:

• IFA-Certification – W3-Approved
• Fan type – Radial fan
