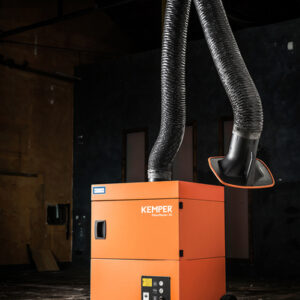

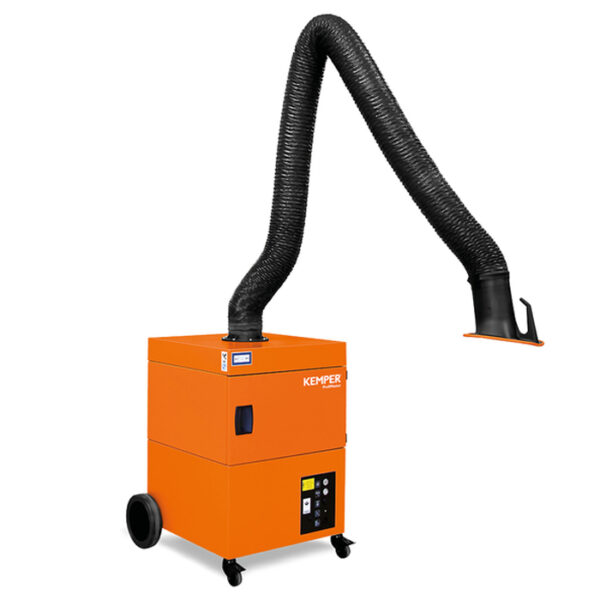

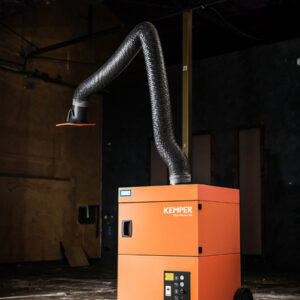

Kemper ProfiMaster Welding Fume Extraction

Versatile Mobile Welding Fume Extractor – Safe, Easy & Efficient

Ideal for all welding applications including high-alloy steels, this unit is built to handle low to medium levels of smoke and dust, making it perfect for occasional to regular use. With safe rotation field control and a flow-optimised exhaust hood that requires minimal adjustment, it ensures smooth operation and improved efficiency. The rotating exhaust hood and up-to-4m reach give excellent coverage across the workspace. Maintenance is simple thanks to the easy-access door for quick filter changes, while filter monitoring enhances operator safety. For added convenience, an automatic start-stop function is available.

Applications:

• Suitable for high alloy steel
• Low to medium amounts of smoke/dust
• Occasional to regular use

Benefits:

• Maintenance door allows easy filter change
• Safe operation by rotation field control
• Exhaust arm requires less adjustment due to exhaust hood design
• Increased safety with filter monitoring

Properties:

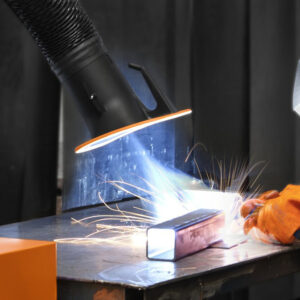

• Rotating exhaust hood
• Two-stage filter
• Exhaust arm 3 meter flexible

Filter:

• Filter method – 2-stage
• Type of filter – Disposable filter
• Filter surface – ca.  17m2
• Filter efficiency – >99%
• Filter material – Non-woven fibre
• Welding fume separation class – W3

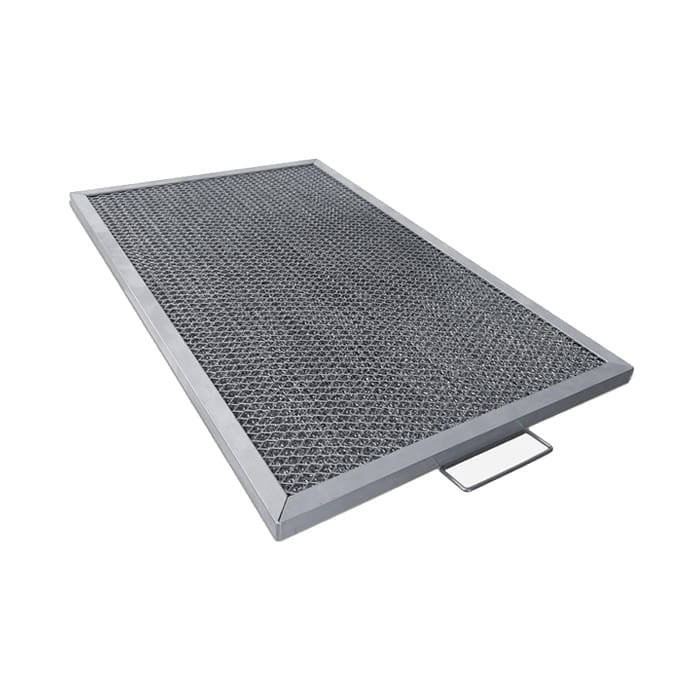

• Additional filters – Pre-filter

Technical Data:

• Dimensions (w x d x h) – 785 x 730 x 950  mm
• Weight – 106 kg
• Diameter extraction arm – 150 mm
• Control voltage – 24 V, DC
• Rated current – 2.3 A
• Noise level – ca. 70 dB(A)
• Extraction capacity at hood – max. 1.100 m3 /h
• Maximum vacuum – 2.100 Pa

W3-Approved with IFA-Certification
