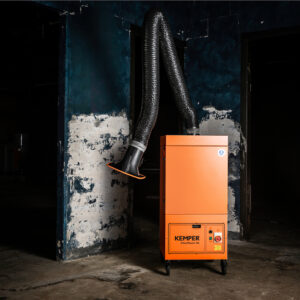

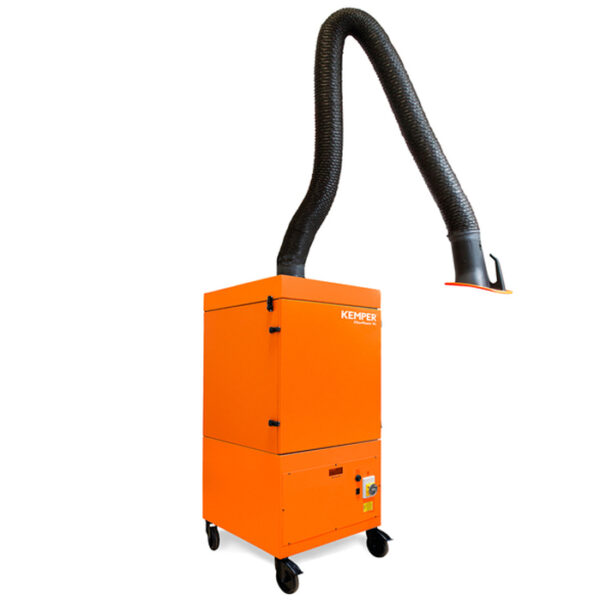

Kemper FilterMaster XL Welding Fume Extraction
The FilterMaxter XL by Kemper, is a mobile welding fume extraction unit built for continuous welding applications where heavy smoke and dust are generated. Designed for durability and efficiency, it features a timed, automatic self-cleaning filter system with a large 10 m² filter surface area. The KemTex® ePTFE membrane filter cartridge captures even the finest particles below 0.1 μm, providing superior operator protection With W3/IFA Certification, the FilterMaster XL is fully approved for stainless steel and chromium-nickel welding processes. Suitable for all materials, FE, SS, AL.
- 230V Single Phase 10Amp
- 1.5Kw Motor
- 1,000m3h Extraction Capacity
- 4m Flexible Extraction Arm
- Automatic, Self-Cleaning Filter Cartridge
- Suitable for ARC, MIG & TIG Welding
- W3/IFA Certified
- Filter Saturation Indicator
- Compact and Solid Design
- Start Stop Sensor (Optional)
- Hood Lighting (Optional)
Package Includes: Kemper FilterMaster XL Fume Extractor, 4m Flexible Extraction Arm, Input Cable & 10Amp Plug.
Have a question about this product?
Give us a call on 03 341 5591, or send us a email at [email protected]
FilterMaster XL – Heavy-Duty Mobile Welding Fume Extractor
Built for non-stop industrial use, this advanced fume extraction unit delivers maximum protection for welders working with all materials including high-alloy steels. Designed to handle heavy smoke and particle loads, it combines efficiency, safety, and ease of use in one robust system. The flow-optimised exhaust hood with 360° rotation and integrated damper ensures precise capture of fumes while requiring minimal adjustment during work. With an extraction arm up to 4 m, it offers excellent reach and flexibility across the workspace. Equipped with a KemTex® ePTFE filter cartridge, the system captures even ultra-fine particles below 0.1 μm, ensuring the highest level of operator health protection. Its automatic filter cleaning system guarantees continuous performance and reduced operating costs, while rotation field control ensures safe, reliable operation at all times.
Applications:
- Suitable for all materials, including high-alloy steel
- High levels of smoke and particles
- Non-stop operation
Benefits:
- High efficiency due to automatic filter cleaning
- Exhaust arm requires less adjustment due to flow-optimised exhaust hood design
- Best health protection for employees by use of KemTex® ePTFE filter cartridge with surface filtration
- Safe operation by rotation field control
Properties:
- 360 degrees rotating exhaust hood with damper
- W3/IFA certified
- Automatic filter cleaning
- KemTex® ePTFE filter cartridge
- Rotation field control
- Exhaust arm up to 4 m
- Rotating exhaust hood
Filter:
- Filter Stages – 1
- Filter Method – Cleanable filter
- Filter Cleaning Method – Rotating nozzle
- Filter Surface – 10 m²
- Type of filter – Filter cartridge
- Filter material – ePTFE membrane
- Filter efficiency – > 99.9 %
- Dust classification – M
Technical Data:
- Extraction capacity – 1000 m³/h
- Dimensions (w x t x h) – 643 x 816 x 1457 mm
- Weight – 155 kg
- Noise level – 69 dB(A)
Additional Information:
- IFA-Certification – W3-Approved
- Fan type – Radial fan
- Compressed air supply – 5-6 bar
Additional information
| Brand | Kemper |
|---|
