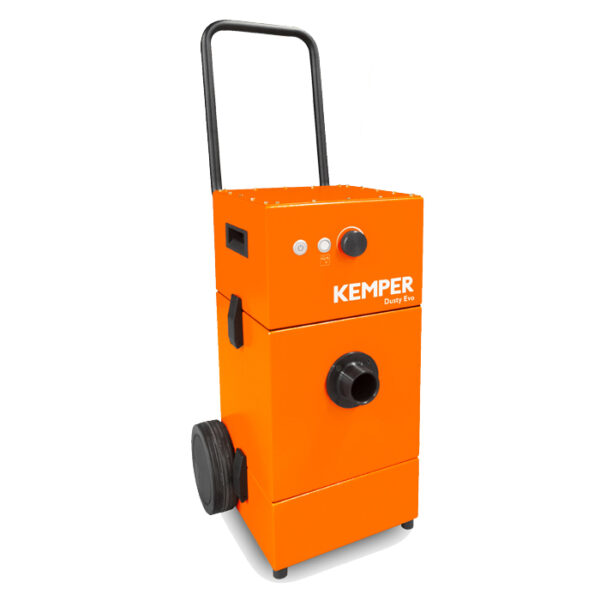

Kemper Dusty Evo Fume Torch Extraction
The Dusty Evo from KEMPER is a portable fume extractor designed for both mobile extraction and ‘On Torch’ fume control solutions. Engineered for professional welders, this portable fume extraction unit delivers high extraction capacity thanks to its dual high-performance turbines. Stepless speed control, Lightweight, and Manual Filter cleaning make the Dusty Evo a great choice for all Fabricators!
- 230V Single Phase 10Amp
- 1.6Kw Motor
- 260m3/h @ 18,100pa
- KemTex® ePTFE Filter Cartridge
- Manual Filter Cleaning
- High Extraction Capacity Due To Two High Performance Turbines
- Maximum Protection for employees by use of KemTex® ePTFE Filter Cartridges with Surface Filtration
- Easy to Transport on Site or Confined Spaces
- Lightweight, Ideal for Mobile use

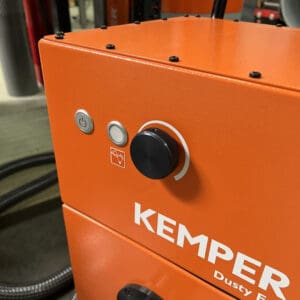

- Stepless Speed Control for Optimal Adjustment
- Cleaning Indicator
- Portable and mobile
- Dust Collection Tray, 6L
- Start Stop Sensor (Optional)
- Tool Tray with Cup Holder (Optional)
- Slot Nozzle (Optional)
- Funnel Nozzle (Optional)
Package Includes: Kemper Dusty Evo Extractor, Extraction Hose 2.5M, Input Cable & 10Amp Plug.
Have a question about this product?
Give us a call on 03 341 5591, or send us a email at [email protected]
Compact Power. Clean Air. Total Mobility

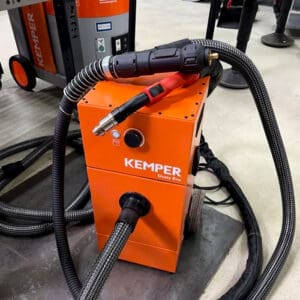

Engineered for professional welders, this portable fume extraction unit delivers high extraction capacity thanks to its dual high-performance turbines. Protect your team’s health with the KemTex® ePTFE filter cartridges offering advanced surface filtration for maximum dust and fume capture. Built for mobility, it features a lightweight design, rigid handle, and recessed grips for easy transport, even in confined spaces. The stepless speed control lets you fine-tune extraction to your welding process, while the automatic start-stop function saves energy and extends filter life (Start stop Optional). Convenience comes standard with manual filter cleaning, a cleaning indicator, and a 6L dust collection tray. The Optional integrated tool tray with cup holder keeps essentials close at hand and the choice of a slot nozzle, funnel nozzle or a connector for on torch extraction applications. Ideal for repair work, alternating job sites, and regular use where low to medium fume levels are present.
Applications:
- Low to medium levels of smoke and dust
- Occasional use
- Nozzles, funnel and torch extraction
- Repair work
- Alternating work places
Benefits:
- High extraction capacity due to two high performance turbines
- Best health protection for employees by use of KemTex® ePTFE filter cartridges with surface filtration
- Easy to transport on site or confined spaces due to rigid handle and recessed grips
- For mobile use due to light weight
- Optimal adjustment to the welding process with stepless speed control
Properties:
- Manual filter cleaning
- Cleaning indicator
- KemTex® ePTFE filter cartridge
- Portable and mobile
- Stepless speed control
- Dust collection tray, 6L
Filter:
- Filter stages 1
- Filter method – Cleanable filter
- Filter cleaning method – Manual
- Filter surface 1.35 m²
- Type of filter – Filter cartridge
- Filter material – KemTex® ePTFE membrane
- Filter efficiency > 99.9 %
- Dust classification M
Technical Data:
- Extraction capacity 260 m³/h
- Max. fan performance 360 m³/h
- Maximum vacuum 18.100 Pa
- Dimensions (w x t x h) 410 x 472 x 1004 mm
- Weight 29,5 kg
- Motor power 1,6 kW
- Power supply 1 x 230 V / 50 Hz / 60 Hz
- Rated current 8,7 A
- Noise level 74 dB(A)
- Hose connection Ø 45 mm / Ø 63 mm
Additional Information:
- Fan type Suction turbine
Additional information
| Brand | Kemper |
|---|
