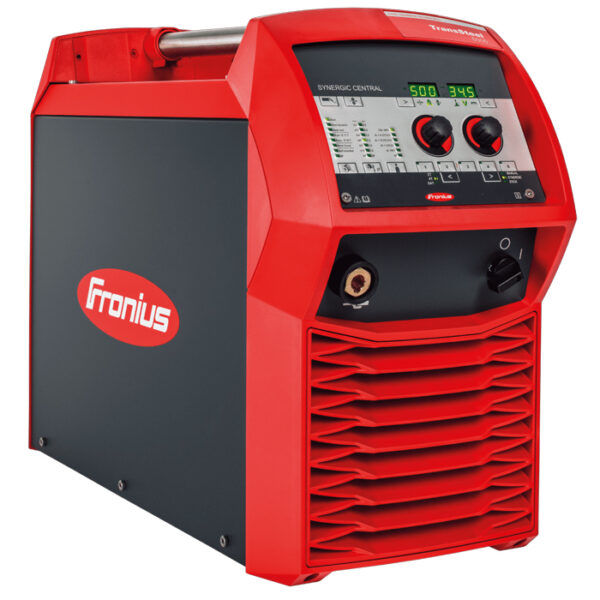

Fronius TransSteel 3500 – 5000 Mig Welder

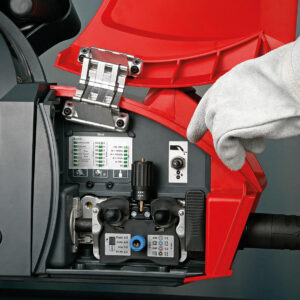

The TransSteel stands for reliability, the greatest possible ease of use and perfect steel welding. The lightweight, robust module with hosepack, welding torch and display ensures that the filler wire advances reliably. The Comfort Wire function automatically takes care of wire threading. The user can easily remove the portable wirefeeder and carry it to welding locations that are difficult to access. Irrespective of the position of the hosepack, the welding parameters remain stable.
- Output of 350A or 500A Available
- 350A/500Amps @40% Duty Cycle
- 415V Single Phase
- Synergic MIG Operation; Steel, CrNi, AlMg, AlSi, Metal Cored, Rutil FCW, Basic FCW, Self-shielded
- Very easy to use interface
- Pulsed Lift TIG with additional TAC function
- 0.8 – 1.6mm Wire Diameters
Package includes: Fronius TransSteel 3500 or 5000 Powersource, 3,5m Fronius MTG320i FSC Mig Torch, 4m Earth Lead, Input Lead & 3 Phase Plug.
Please call or enquire to customise your package.
Have a question about this product?
Give us a call on 03 341 5591, or send us a email at [email protected]
High-power welding and a broad range of applications
167 Characteristics*
/ Steel, CrNi, AlMg, AlSi, Metal Cored, Rutil FCW, Basic FCW, Self-shielded / 0.8 – 1.6mm wire diameter / Eight different gas mixturesReady to weld in three steps
The intuitive operating concept enables welders to start work straight away – no prior knowledge of the device is required. All the essential welding parameters can be viewed and adjusted on the front panel. The only parameters that have to be selected before welding begins are the gas, wire diameter and material thickness.The MIG/MAG welding functions
Special 4-step mode – For a more stable arc
The “Special 4-step mode” is particularly suitable for welding in the higher power range. In special 4-step mode, welding starts at a lower power, which makes the arc easier to stabilize.Spot and Stitch welding – With no material distortion
Spot mode enables you to place welding spots at regular intervals. As you have complete flexibility over the pause time between the intervals, spot welding is ideal for the tacking of workpieces. Stitch welding not only produces a rippled seam appearance, the low level of heat input reduces any possible material distortion when working with light gage sheets.STEEL – Transfer technology
- Steel is the universal characteristic for quick and easy welding applications.
- Steel root is the characteristic specifically developed for root pass welding. It is characterized by particularly strong gap-bridging ability, in other words, the ability to fill wide gaps.
- Steel dynamic is a characteristic with a particularly hard and concentrated arc, resulting in high welding speeds and deep penetration.
Corrections during welding
The arc length correction and arc-force dynamic welding parameters can be used to optimize the welding result.Arc length correction – To change the arc characteristic
– shorter arc, reduced welding voltage o neutral arc + longer arc, increased welding voltageArc-force dynamic – For influencing the short-circuiting dynamic at the instant of droplet transfer
– hard, stable arc o neutral arc + soft, low-spatter arcAdditional information
| Brand | Fronius |
|---|---|
| Machine Specifications | Mains Voltage: 3 x 380V / 400V / 460V Mains Voltage Tolerance: -10 / +15% Mains Frequency: 50-60Hz Welding current min: 10 A Welding current max: 500 A Welding current / Duty cycle [10min/40°C]: 500A / 40% Welding current / Duty cycle [10min/40°C]: 420A / 60% Welding current / Duty cycle [10min/40°C]: 360A / 100% Open-circuit voltage: 65 V Degree of protection: IP23 Dimension / length: 747 mm Dimension / width: 300 mm Dimension / height: 497 mm Weight: 32,5 kg |
