Steel Transfer Technology
– Steel is the universal characteristic for quick and easy welding applications.

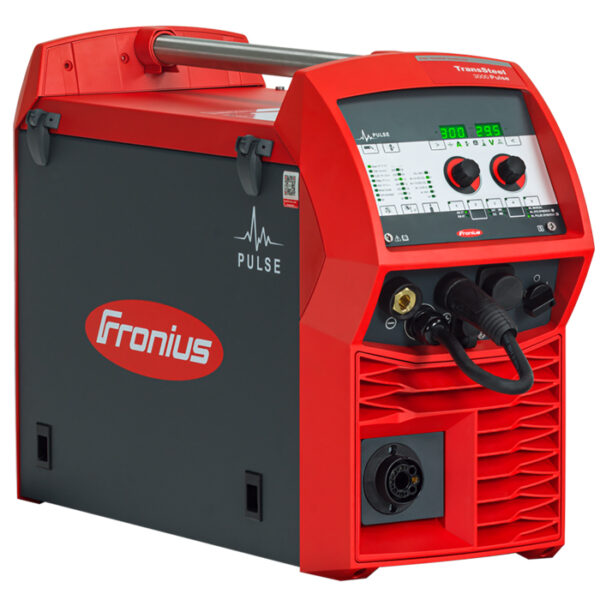

Fronius TransSteel 3000C Compact Pulse Mig Welder
Whether a construction site or a workshop, from agricultural enterprises to metalworking companies – for assembly, repair, and maintenance work, the TransSteel Multiprocess series masters the MIG/MAG, TIG, and electrode welding processes to professional levels.
- 300Amps @ 40% Duty Cycle
- Multi-Process operation (MIG/MAG, DC Lift Arc TIG, MMA)
- Simple welding process changeover – within minutes
- Compact Design with in-built 4 roll wire-feeder
- Steel Transfer Technology, now with PCS (Pulse Controlled Spray)
- Pulsed Arc Process with all new welding characteristics
- Modular design with optional Cooling unit and water-cooled torches with up to 100% Duty Cycle
Package includes: Fronius TransSteel 3000 Compact Pulse Powersource, 3,5m Fronius MTG320i FSC Mig Torch, 5m Earth Lead, Input Lead & 3 Phase Power Plug.
Please call or enquire to customise your package.
Have a question about this product?
Give us a call on 03 341 5591, or send us a email at [email protected]
One power source – all manual welding applications
With the Fronius TransSteel 3000 Compact Pulse you have access to MIG/MAG, TIG and electrode welding in one power source. As a result, you do not need any other welding units. No compromises in performance for the different processes, compared to equipment designed for a single process.
118 Characteristics*
Steel, CrNi, AlMg, AlSi, Metal Cored, Rutile FCW, Basic FCW, self-shielding wires 0.8–1.2 mm wire diameter Eight different gas mixtures
* Maximum number of characteristics (TransSteel 3000 C Pulse), varies depending on version
Ready to weld – Three steps

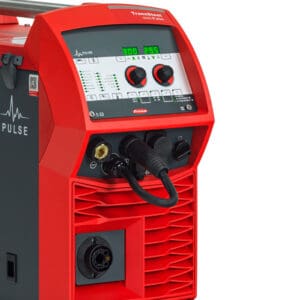

The intuitive operating concept allows welders to start using the equipment immediately, without any prior knowledge. All important parameters are set and displayed on the power source’s front panel. To start welding, all you need to do is select the gas, material, wire diameter and material thickness.
70% less post-processing – 30% faster welding
The pulse function in the TransSteel 3000C enables higher welding speeds in thicker materials. The pulsed arc also reduces post-work by reducing the amount of weld spatter.
Economical and environmentally friendlyThe MIG/MAG welding functions
Pulse – Welding controlled and fast
The new TransSteel 3000C Pulse marks the arrival of the pulsed arc in the TransSteel series. The setting is simply selected from the main menu and facilitates controlled welding in the intermediate arc range.Spot and Stitch -Welding with no material distortion
Spot mode enables you to place welding spots at regular intervals. As you have complete flexibility over the pause time between the intervals, spot welding is ideal for the tacking of workpieces. Stitch welding not only produces a rippled seam appearance, the low level of heat input reduces any possible material distortion when working with light gage sheets.Special 4-step – Mode for a more stable arc
The “Special 4-step mode” is particularly suitable for welding in the higher power range. In special 4-step mode, welding starts at a lower power, which makes the arc easier to stabilize.SynchroPulse – Seam rippling for aluminum alloys
The “SynchroPulse” option is recommended for the welding of aluminum alloys when a rippled seam appearance is required. This effect is achieved by modifying the welding power between two operating points. ! SynchroPulse works in Standard Synergic and Pulse Synergic Mode – but only on the TransSteel 3000, 4000 and 5000 Pulse Steel Transfer Technology– Steel root is the characteristic specifically developed for root pass welding. It is characterized by particularly strong gap-bridging ability, in other words, the ability to fill wide gaps.
– Steel dynamic is a characteristic with a particularly hard and concentrated arc, resulting in high welding speeds and deep penetration.
– PCS (Pulse Controlled Spray Arc) characteristics* facilitate a combination of intermediate and spray arcs – the result is deep penetration with minimal spattering.
*TransSteel 3000C Pulse
Additional information
| Brand | Fronius |
|---|
