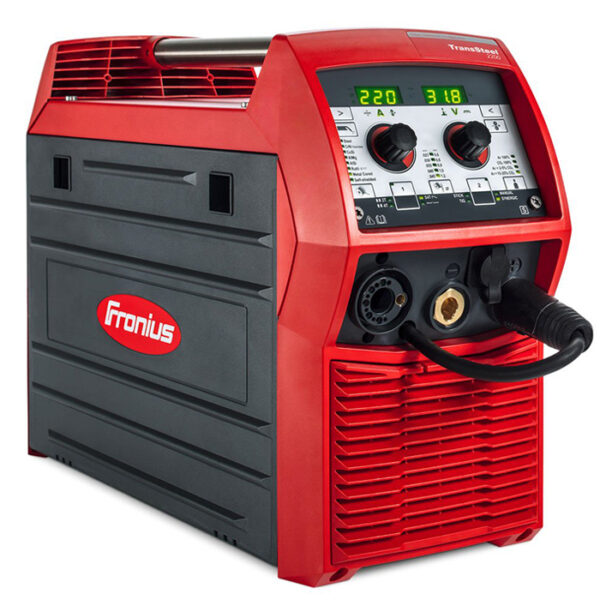

Fronius TransSteel 2200C Compact MIG/TIG/Stick Welder
The TransSteel 2200C is a compact, 3-in-1 solution. Multiprocess-capable, bringing together MMA, MIG/MAG and TIG (pulse) in a single device. The TransSteel 2200 is characterised by the intelligent design of the device, ease of use, robustness and a high level of reliability. Weighing only 15.5 kg, it is also one of the lightest devices on the market.
- 210Amps @ 30% Duty Cycle
- 230V Single Phase
- Synergic MIG Operation; Steel, CrNi, CuSi, rutile FCW, metal-cored, self-shielded, AlMg5, AlSi5
- Very easy to use interface
- Pulsed Lift TIG with additional TAC function
- MIG up to 220A, DC Lift Arc TIG up to 230A, MMA up to 180A
- 0.6 – 1.2 mm Wire Diameters
Package includes: Fronius TransSteel 2200C Powersource, 3,5m Fronius MTG250i FSC Mig Torch, 4m Earth Lead, Input Lead & 15Amp Plug.
Have a question about this product?
Give us a call on 03 341 5591, or send us a email at [email protected]
No compromises. TransSteel multiprocess.
The TransSteel 2200 is a compact, 3-in-1 solution. It is the first single-phase inverter power source from Fronius that is also multiprocess-capable, bringing together MMA, MIG/MAG and TIG in a single device. The TransSteel 2200 is characterised by the intelligent design of the device, ease of use, robustness and a high level of reliability. Weighing only 15.5 kg, it is also one of the lightest devices on the market.
118 characteristics*
/ Steel, CrNi, AlMg, AlSi, Metal Cored, Rutil FCW, Basic FCW, self-shielded wires / 0.8 – 1.2 mm wire diameter / Eight different gas mixturesReady to weld in three steps
The intuitive operating concept enables welders to start work straight away – no prior knowledge of the device is required. All the essential welding parameters can be viewed and adjusted on the front panel. The only parameters that have to be selected before welding begins are the gas, wire diameter and material thickness.Integrated Polarity Reverser
By reconnecting the integrated polarity reverser, flux core wires of different polarities can also be welded.Integrated Wearing Parts Box
A wearing parts box integrated in the housing of the power source is a handy storage tool.Machine Functions:
TAC
With TAC, one spot is all it takes for tacking, because the pulsed arc sets the two weld pools in motion, making them jump together in next to no time, to make one single weld-pool. The TAC function is also very useful when welding light-gauge sheets without filler metal.Spot & Interval Welding
Spot and interval welding are ideal for applications where thin sheets need to be welded, as the heat input is not so high. The arc intervals can be adjusted to suit the individual requirements and are applied to the workpiece with complete consistency.Touchdown Ignition
Touchdown ignition can be used in particular for sensitive application areas. This allows electromagnetic interference, which can occur during HF ignition, to be avoided.
Additional information
| Brand | Fronius |
|---|---|
| Machine Specifications | Mains voltage: 230V Mains voltage tolerance: -20% / +15% Mains Frequency: 50-60Hz Welding current min: 10 A Welding current max: 230 A Welding current / Duty cycle [10min/40°C]: 210A / 30% MAG, 180A / 35% MMA, 230A / 35% TIG Welding current / Duty cycle [10min/40°C]: 170A / 60% MAG, 150A / 60% MMA, 200A / 60% TIG Welding current / Duty cycle [10min/40°C]: 150A / 100% MAG, 130A / 100% MMA, 170A / 100% TIG Operating voltage min: 14,5 V Open-circuit voltage: 90 V Degree of protection: IP23 Dimension / length: 560 mm Dimension / width: 215 mm Dimension / height: 370 mm Weight: 16,2 kg Length of mains cable: 2500 mm |
