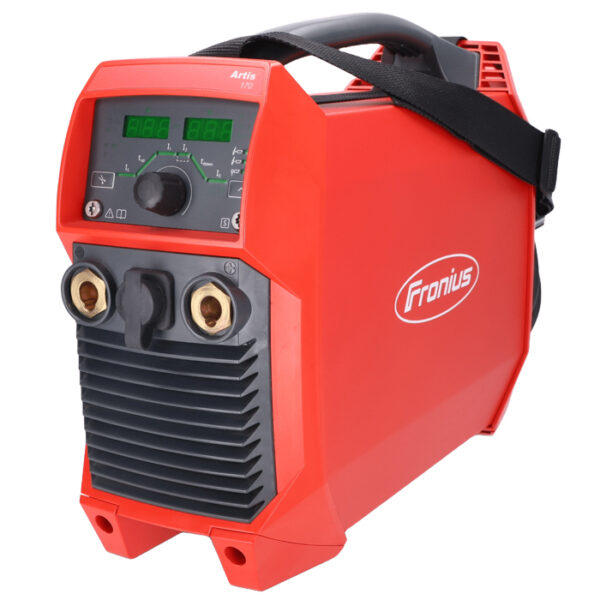

Fronius Artis 170/210 DC Tig Welder
The Artis-170/210 generation masters this balancing act perfectly, combining both in a compact, robust system design. Despite its lightweight and easy-to-handle design, weighing in at less than ten kilograms, it offers all the key adjustment options that are otherwise found only on the larger professional TIG systems. Our main focus has been to ensure that the welding system makes the best possible use of the input voltage. This not only makes the Artis energy-efficient, but also extremely reliable and productive, which will ultimately make your welding experience more enjoyable!
Package includes: Fronius Artis 170 or 210 Powersource, 8m Fronius Muti-Lock Tig Torch, 4m Earth Lead, Input Lead & 15Amp Power Plug.
Please call or enquire to customise your package.
Have a question about this product?
Give us a call on 03 341 5591, or send us a email at [email protected]
Optimised gas protection manually and automatically
The welding machine helps you work smarter. Depending on the set welding current, Artis automatically calculates the optimal gas post-flow time. This optimizes both the gas protection for the welding end and the tungsten electrode, ensuring a high-quality result.Trigger mode off: Automatic shutdown
When the welding work is finished, the welding machine automatically turns off the power after the arc length is changed in a specific way.TAC function: Up to 50% time savings when tacking materials
Pulse currents are used to vibrate the melt baths. This makes it easier to bond components together and shortens the bonding time. There is little or no discoloration at the bonding points.Pulse/Tac display function curve
On the control panel, the function curve can be expanded with two extra parameters: “Pulse” and “TAC”.Tig pulse function: Welding even with thin sheet thicknesses
Pulse welding is mainly used when welding in confined spaces or when welding very thin materials. The setting range for pulsation is 1 Hz to 990 Hz.Touch HF ignition
Touch HF ignition is required, for example, when a component is difficult to access and requires the use of a torch without a trigger. The machine senses contact with the workpiece and ignites the arc exactly at the desired location after the specified time.Tig torch with multiple application possibilities
Depending on your wishes, our TIG torches can be used with standard function, Up/Down function, Long Trigger or potentiometer.Spot and interval welding: Repeated weld joints
In spot welding mode, you can set welding points at regular intervals. With the freely adjustable interval interruption time, work can instead be continued as interval welding.
MMA Welding Functions at Fronius Artis
Push-And-Twrt Button
Used to quickly and easily set the most important welding parameters directly on the function curve.Gas Test Button
Provides the ability to check gas flow and clear the hose package, especially after a longer inactive period.Button For Setting The Welding Process
Allows you to choose between 2-step, 4-step and electrode mode, ensuring flexibility for different needs.Welding Process Status Indicator
Clearly displays current status for 2-step, 4-step and electrode mode, making it easy to keep track of the process.Individually Adjustable
Offers the ability to customize various settings directly in the background menu, which increases user-friendliness.
For Today, Tomorrow And Beyond
400V Protection Circuit
The protection circuit effectively prevents damage if the device is connected to a power source with too high a voltage. This function ensures safe operation and protects the machine from unexpected power fluctuations.
PFC—Power Factor Correction
Power factor correction ensures sinusoidal power consumption, optimizing the use of available power. Only the necessary amount of energy is taken from the mains, saving resources. In addition, PFC enables the use of longer mains cables, improves generator connections and delivers higher welding currents. All this without the risk of tripping the automatic circuit breaker.
Time-Out/Standby Mode
After a preset period of time, the power module automatically turns itself off. The device then enters standby mode to effectively minimize energy consumption and save resources.
Low Power Cconsumption
Thanks to the optimized power module design and power factor correction technology, the Artis 170/210 consumes up to 40% less energy than comparable competitor products, while delivering the same high output power, combining efficiency with performance.
Additional information
| Brand | Fronius |
|---|
