Lincoln CV425


High output, Reliable Workhorse

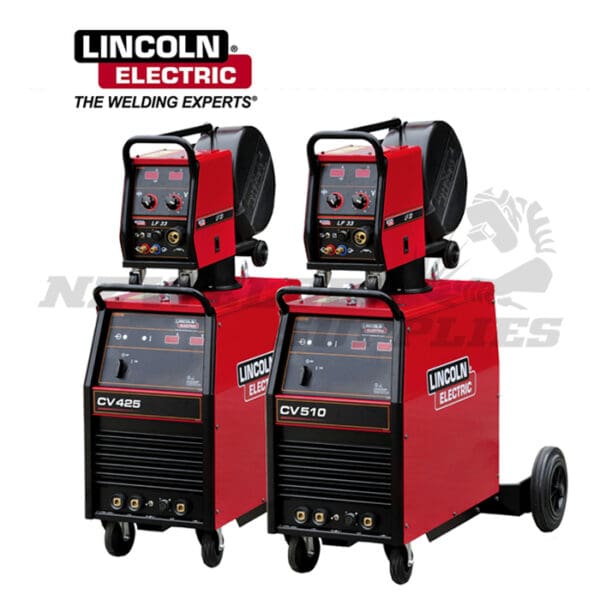

The CV-425 and CV-510 are industrial power sources designed for heavy-duty applications. Both power sources meet IP23 protection which means that they will operate in the most arduous environmental conditions experienced, in such places as shipyards or offshore yards. The machines have been designed so that all the sensitive components are enclosed in a compartment free from dust and separated from the air-flow needed to cool the machine. The PCB within the machines is completely encapsulated which will provide maximum protection from the elements. Both the CV-425 and CV-510 power sources are tested at + 40°C and rated at 60% duty cycle. As a result of this rigorous testing and specifications, it allows these machines to operate and weld in any environment at a 100% duty cycle. Like all Lincoln machines the CV-425 and 510 are designed with the application in mind.

Key Features

  • Potted and Encapsulated Printed Circuit Board controls in separate dust free compartment
  • Different feeders for construction and shipyards,all with meters, with or without synergy or memory; just select the one of your choice
  • Low Cylinder Entry – For easy loading and unloading of the gas Cylinder
  • All Controls are conveniently located on the wire feeder next to the Operator
  • LF-33 small rugged and easy to handle feeder with bright digital volt and Amp meters
  • Superb Arc Behaviour with Argon Mix and 100% CO2
  • Electronic feedback system on the wire drive will guarantee consistent wire feed speed
  • Equipped with large diameter wheelspush/pull bar and lifting eyes for full manoeuvrability
  • 3 Year Warranty

Additional information


Lincoln Electric
